nGENESIS Digital DAS
Deliver high-capacity, multi-operator, neutral-host connectivity with our 4th-generation digital DAS solution. The SOLiD nGENESIS™ Distributed Antenna System (DAS) is a unified platform that delivers 4G and 5G cellular bands in multiple power classes
Universal Headend | Sustainable Power Efficiency | High Performance Radios
SOLiD nGENESIS™ 4th Generation Digital DAS Provides Scalable, High-Capacity, Neutral-Host Coverage with Unmatched Performance and Power Efficiency.
Versatile Neutral-Host
Connectivity
Optimized to deliver tailored coverage in diverse industries, from transportation and stadiums to healthcare and hospitality
Industry-Leading
Performance
Provide high-capacity data transmission with up to two 25 Gbps fiber optic links in a scalable digital platform
Unprecedented Energy
and Space Savings
Set a new benchmark in energy efficiency by reducing headend power consumption and radio node power usage by more than 50% in a compact space-saving design
SOLiD nGENESIS: The Next-Generation Digital DAS Platform
SOLiD nGENESIS Digital DAS features a modular headend for easy expansion and maintenance. The headend is universal, supporting all power classes of nGENESIS remotes from sub-1W to 40W. The high-performance optical transport uses up to two 25 Gbps links to deliver up to 2400 MHz of cellular bandwidth in up to 4×4 MIMO. The headend accepts both digital (CPRI/eCPRI) and analog (RF) signal sources for maximum flexibility and future readiness. Other advanced features include sector-switching via software-defined profiles, daisy-chaining of remotes, digital filtering, fast ALC for near-far mitigation, ultra-low power consumption enabled by high-efficiency amplifier linearization, flexible power allocation, and simplified management that automatically discovers nodes and provides an intuitive interface for system management.
nGENESIS Digital DAS Headend

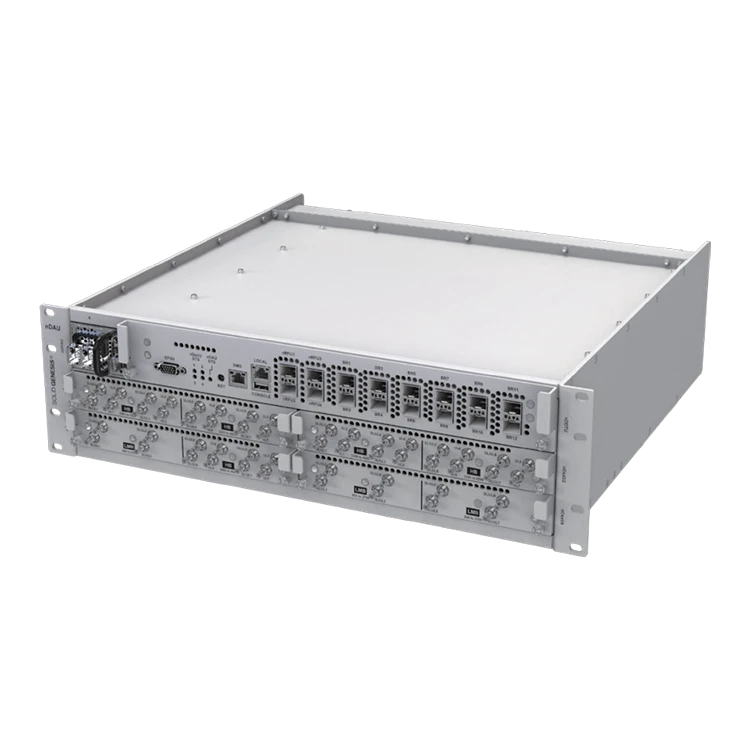

nDAU
Head-end unit for nGENESIS digitizes, filters, and distributes signals via optical interfaces. Supports O-RAN and RF connections to RAN

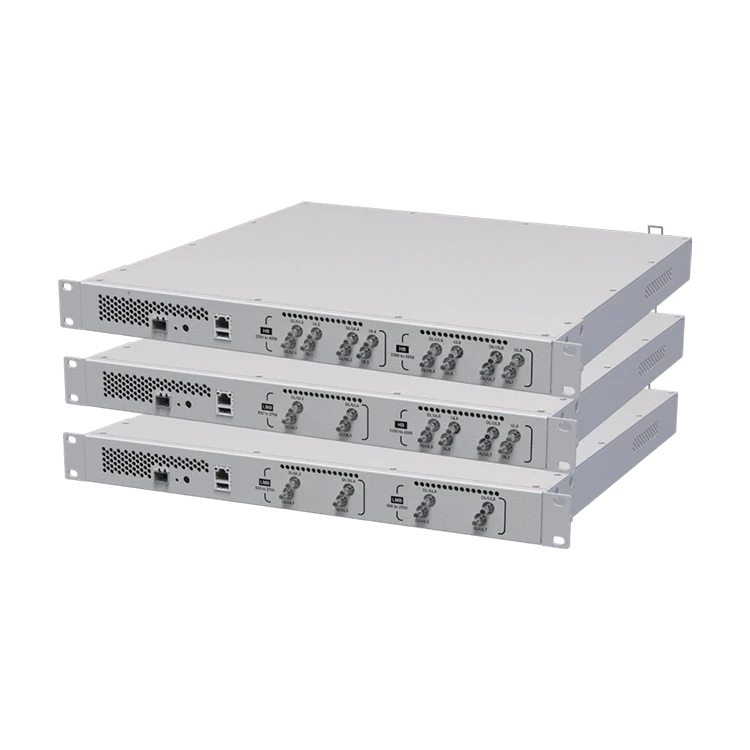

nRFU
Wideband Radio Frequency Unit enables remote base station hotels and head-end port capacity expansion

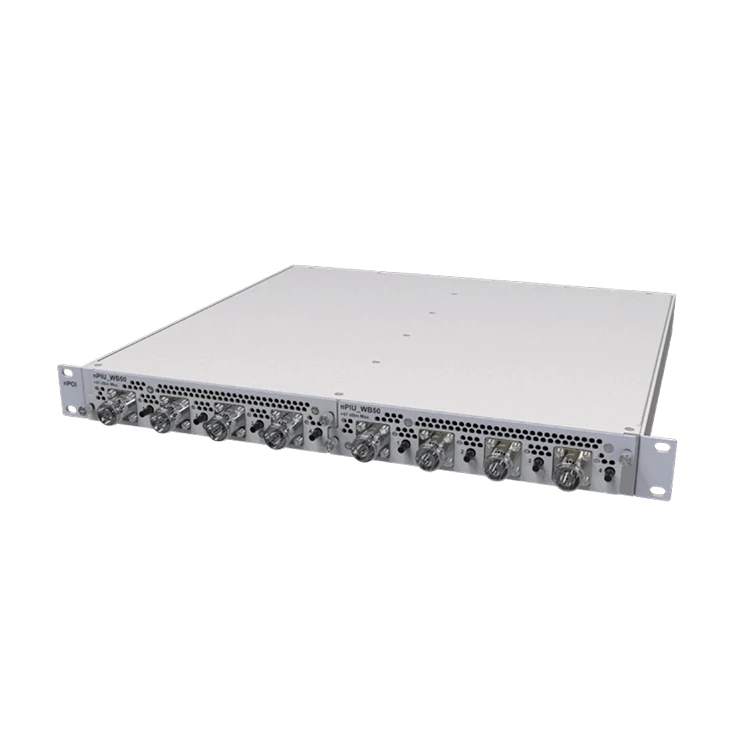

nPOI
Optional high power (50W) Point of Interface Supports up to 8 RF inputs

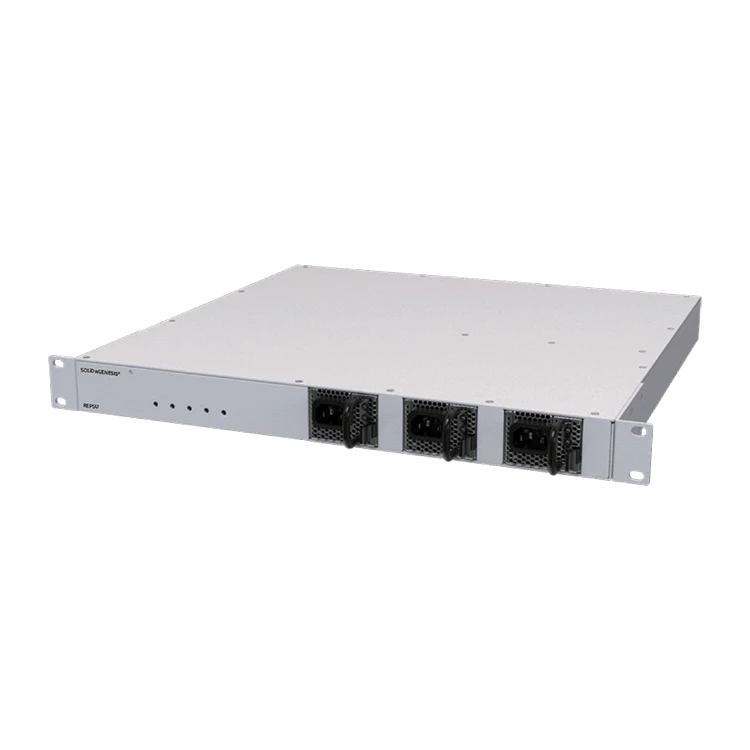

REPSU
Optional Redundant and Expandable Power Supply Units

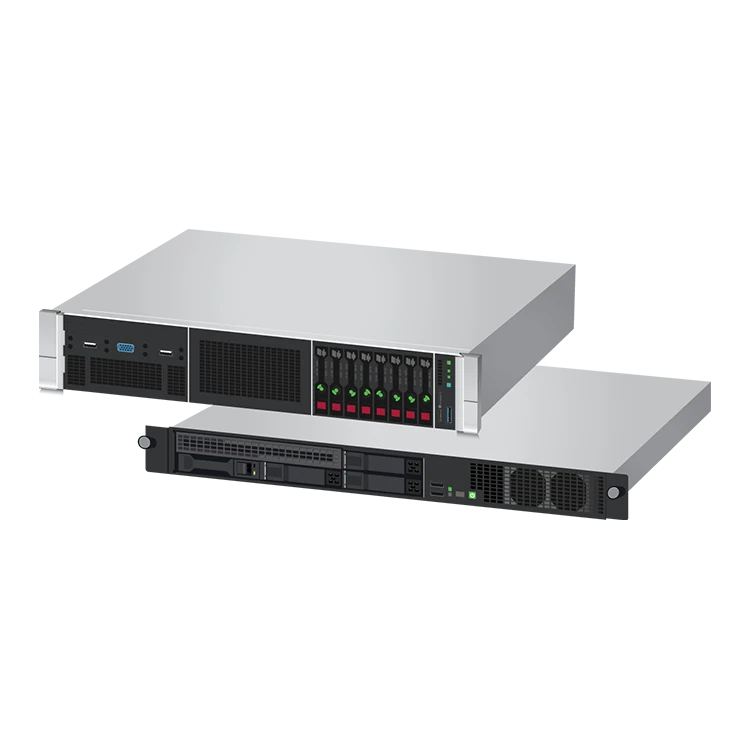

DMS3000
All-In-One DAS Management Platform with Intuitive User Interface
nGENESIS Hub Unit

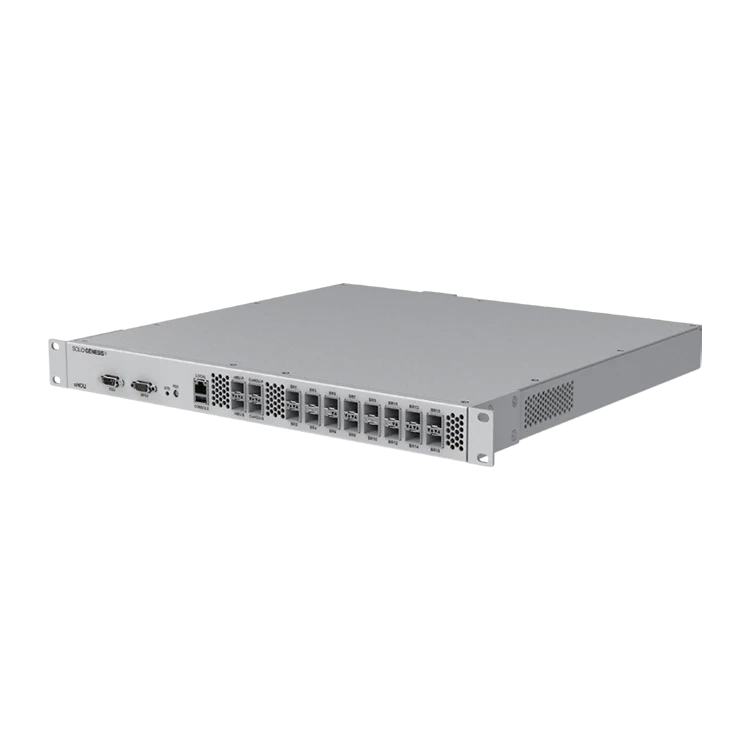

nHOU
Hub Optic Unit supports all radio nodes with 25Gbps optical links
nGENESIS Remote Units

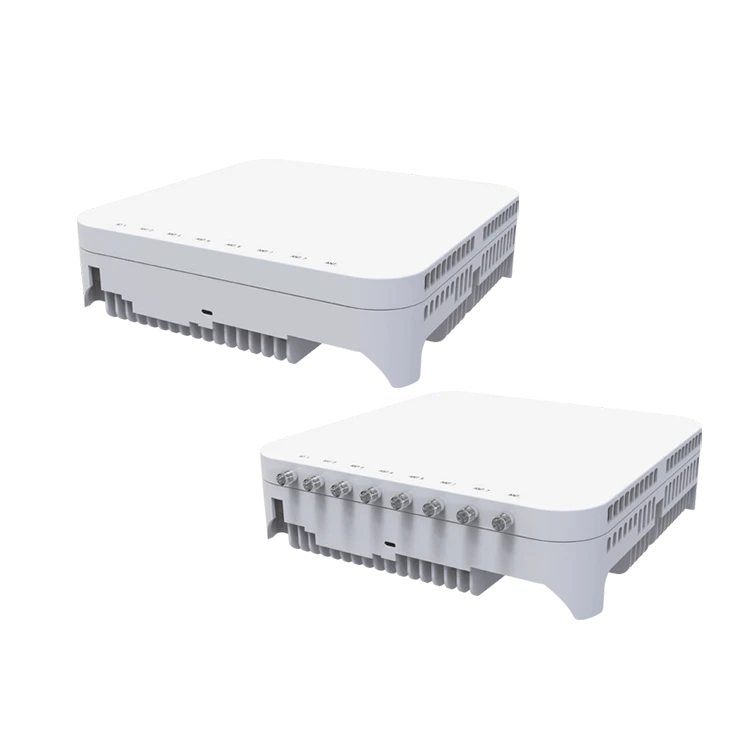

nLRN_OCT
Low-power Radio Node provides 19-30 dBm EIRP per band (8T8R up to 4×4 MIMO per band)

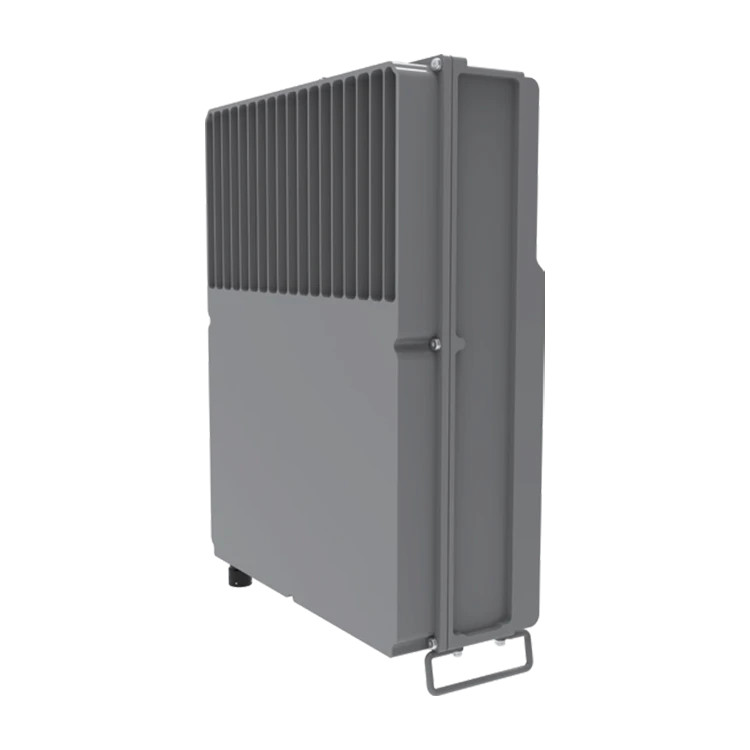

nMRN
Medium-power Radio Node provides up to 37 dBm per band (6T6R up to 4×4 MIMO per band)

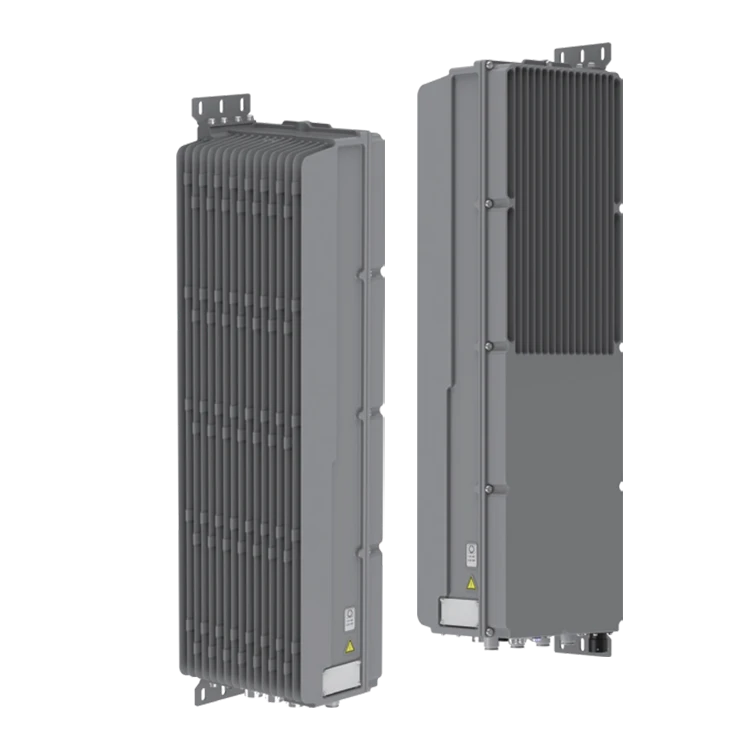

nHRN
High-power Radio Node provides up to 46 dBm per band (4T4R up to 4×4 MIMO per band)
Experience nGENESIS – 4th Generation Digital DAS – Simple, Scalable, Neutral-Host Mobile Connectivity
SOLiD has been a pioneer in digital DAS since 1999, and nGENESIS is the fourth generation of the GENESIS Digital DAS platform, with deployments at some of the world’s best-known transportation, sports, and entertainment venues, as well as hospitals, commercial office buildings, manufacturing facilities, hotels, resorts, and convention centers.
Now available in North America, the SOLiD nGENESIS Digital DAS offers energy-saving sustainability, a small footprint, maximum bandwidth, and outstanding performance. It’s easy to see why the nGENESIS DAS platform is deployed at the highest capacity venues across Europe.
